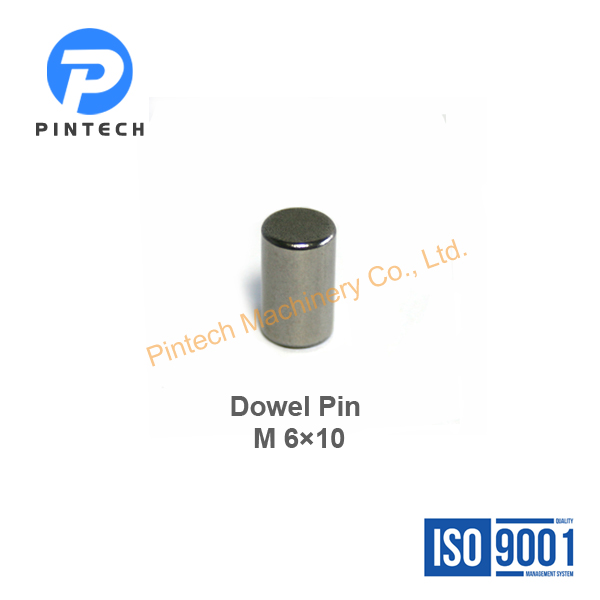

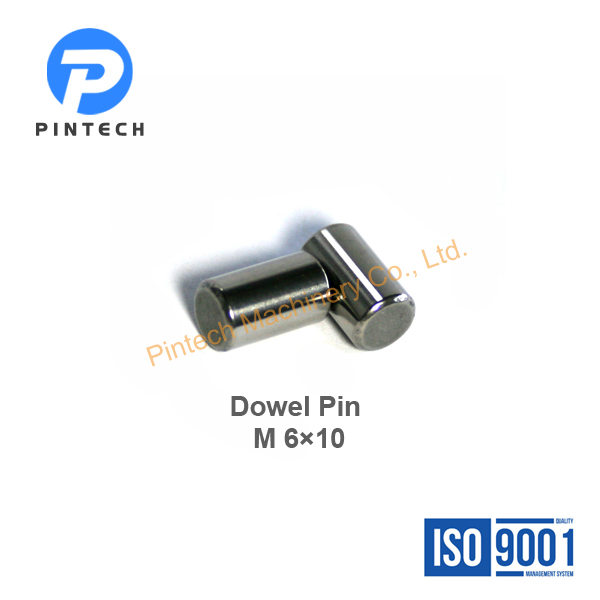

Dowel Pins M6x10 are typically used in precision applications where parts need to be aligned or fixed in place. These pins size are often used in situations where compact, high-precision alignment is necessary, and they are common in both mechanical and automotive industries. Would you like more details on specific dimensions or use cases? Let me know if you’d like to explore more specific uses or standards.
Key Features
Diameter: 6 mm
Length: 10 mm
Material: 100Cr6, AISI52100, SUJ2
Tolerance: m6 or as per requirement
Heat treatment: Hardened and tempered to HRC 58~62
Example Uses
Alignment and Positioning: The primary use of a dowel pin like the 6×10 is for accurately aligning two components. They are inserted into corresponding holes in two parts that need to be positioned relative to each other. For example, in mechanical assemblies or in machinery, they ensure that parts remain in a fixed, precise alignment during assembly, use, or operation.
Component Joining: Dowel pins also help in joining parts together. For example, in a housing assembly, dowel pins can be used to join two parts and prevent shifting.
Guide Pin for Moving Parts: In machines or fixtures with moving parts, a 6×10 dowel pin can serve as a guide to maintain consistent travel and precise alignment of those parts.
Fixtures and Tooling: In fixtures or tooling used for machining or assembly, the 6×10 dowel pin can help set the exact positioning of components, ensuring repeatability and precision in the manufacturing process.
Let us known if you’d like more details on a specific tolerance or material for this size of dowel pin?
