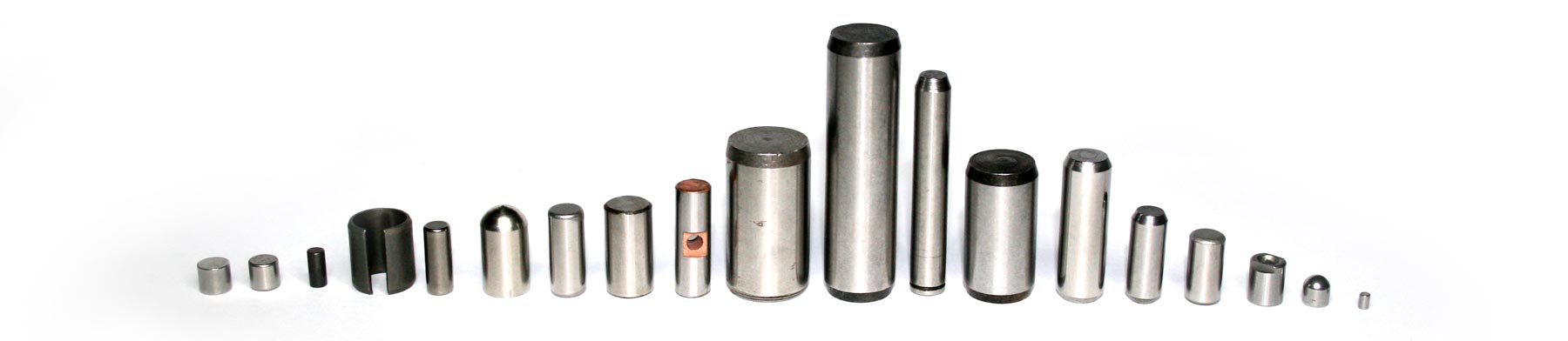

What Are Parallel Dowel Pins DIN 7
Add Your Heading Text Here
Parallel Dowel Pins DIN 7 are standardized cylindrical pins used primarily for accurate alignment and positioning in mechanical assemblies. The DIN 7 specification refers to a German industry standard that ensures the pins are manufactured to precise tolerances, making them suitable for applications that require high precision.
Product description:
- Size: Can be customized
- System of Measurement: Metric
- Tolerance:m6 or as per requirement
- Material: Alloy Steel
- Material Processes: Hardened and tempered
- Hardness Rating: HRC58~62
- Standards and Specifications: DIN 7
- Sample: Normal samples in stock are free
Advantages of Parallel Dowel Pins DIN 7
Standardization
The DIN 7 specification ensures that dowel pins meet specific dimensional and material quality standards, making them interchangeable between different manufacturers and projects. This consistency helps in maintaining uniform quality across different applications.
Ease of Assembly
Due to their slightly looser tolerance compared to tighter standards (like DIN 6325), DIN 7 pins are easier to insert and remove, making them ideal for applications where components may need frequent disassembly or adjustments.
Versatile Application
DIN 7 dowel pins are suitable for a wide range of industries, including automotive, aerospace, machinery, and tool-making. Their standardized design means they can be used in various setups without the need for custom manufacturing.
Applications Of Parallel Dowel Pins DIN 7
Alignment
Used to align two or more parts in precision engineering applications such as machinery, automotive, and tooling.
Positioning
DIN 7 dowel pins ensure parts remain in exact positions relative to each other during assembly.
Locating
These pins can be used as locating elements in jigs, fixtures, or machinery setups, providing consistent accuracy.
