Description

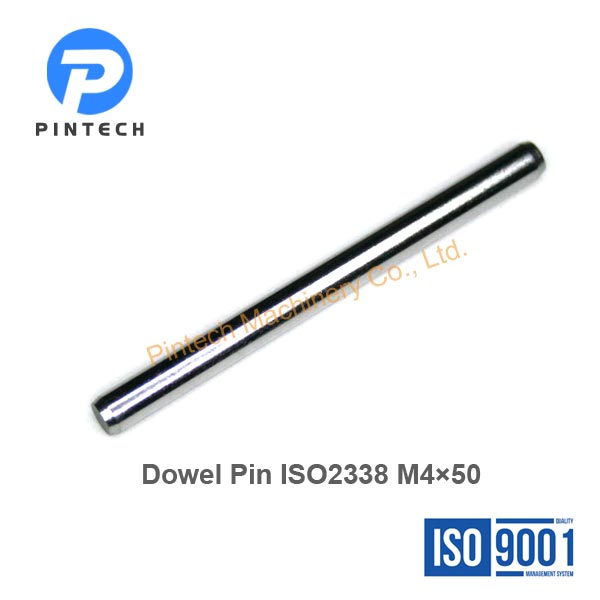

What are ISO 2338 M4 Parallel Dowel Pins？
Add Your Heading Text Here
12mm Parallel Dowel Pins are cylindrical fasteners designed for precise alignment and stability in various applications. Made from high-quality materials, these dowel pins are typically used to keep machine components accurately aligned, serve as location guides for adjacent parts, and maintain the integrity of assemblies.
Product Features
- Brand: Pintech
- Size: Can be customize
- System of Measurement: Metric
- Tolerance: m6 or as per requirement
- Material: Alloy Steel or Stainless Steel
- Material Processes: Hardened and tempered
- Hardness Rating: HRC58~62
- Sample: normal samples in stock are free
Main Processes Of ISO 2338 M4 Parallel Dowel Pins
Material Selection
The process begins with selecting the appropriate material. Provides accurate alignment and positioning of components, reducing the risk of misalignment.
Cutting
The selected material, typically in the form of a rod, is cut to the desired length. The length is determined by the specific application and may vary according to standard lengths defined under ISO 2338.
Turning and Grinding
The cut pieces are machined to the precise 4mm diameter using turning and grinding operations. This ensures dowel pins have a uniform diameter and meet the tolerance specifications outlined in ISO 2338.
Applications Of ISO 2338 M4 Parallel Dowel Pins
Transmission Systems
Applied in aligning and securing transmission components, ensuring smooth and efficient operation without misalignment.
Engine Components
Used to ensure accurate alignment of critical engine parts, minimizing vibrations and improving performance.
Production Lines
Essential for maintaining alignment in automated production lines and conveyor systems, reducing wear and downtime.
Circuit Board Assembly
Utilized to align and secure circuit boards and electronic components during assembly, ensuring proper positioning and connections.
