Description

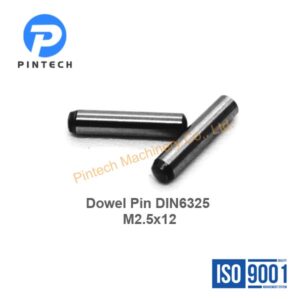

What is Chamfered Parallel Dowel Pins？
Add Your Heading Text Here
Chamfered parallel dowel pins are dowel pins with beveled edges (chamfers) at one or both ends. The chamfering makes it easier to insert the pins into holes, especially when alignment might be challenging or when parts need to be assembled quickly. The beveled edges help guide the pin into the hole, reducing the risk of damage to the parts and the pin itself. Chamfered dowel pins are commonly used in applications where precise alignment and ease of assembly are important.
Product Features
- Brand: Pintech
- Size: Can be customized
- System of Measurement: Metric
- Tolerance: m6 or as per requirement
- Material: Alloy Steel
- Material Processes: Hardened and tempered
- Hardness Rating: HRC58~62
- Standards and Specifications: DIN 6325 or as requirement
- Sample: normal samples in stock are free
Chamfered Parallel dowel pins offer several benefits over regular pins
Ease of Installation
- Chamfered Pins: The beveled edges help guide the pin into the hole, making insertion easier, especially in blind or tight-fitting applications. This reduces the time and effort needed for assembly.
- Regular Pins: With flat ends, regular pins can be more challenging to insert, particularly if the alignment is not perfect. They may require more force or precise alignment to fit properly.
Reduced Risk of Damage
- Chamfered Pins: The chamfered ends reduce the risk of damaging the hole’s edge or the pin during insertion, which is particularly important in softer materials like aluminum or plastic.
- Regular Pins: Flat ends can cause chipping or deformation of the hole edge, especially if there is a misalignment or if excessive force is used during insertion.
Enhanced Fit
- Chamfered Pins: The chamfered edges help the pin seat properly in the hole, ensuring a snug and secure fit, which is crucial for applications where precision and stability are required.应用至关重要。
- Regular Pins: Flat-ended pins may not seat as easily or securely, potentially leading to less accurate fits and increased play between components.
