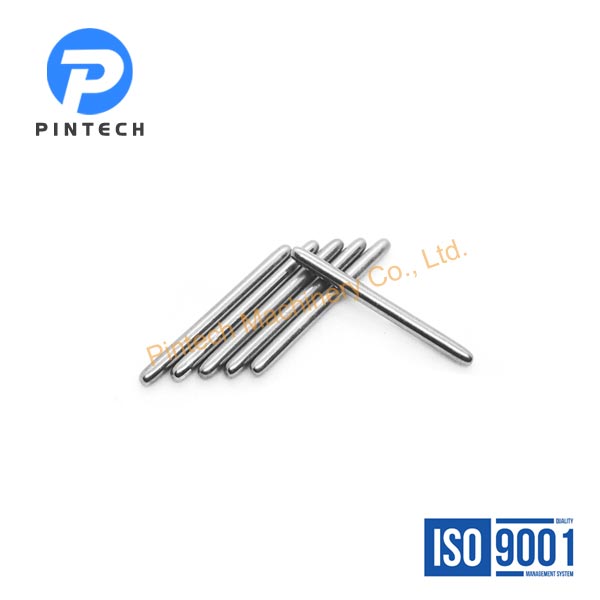

What is Parallel Positioning Pins？
Add Your Heading Text Here
Parallel positioning pins are essential tools in various industries where precise alignment and positioning are required. Their design ensures that components fit together accurately, maintaining the integrity and functionality of the assembly. Whether used in high-precision engineering, automotive manufacturing, or aerospace applications, parallel positioning pins are key to achieving consistent and reliable results.
Product Features
- Brand: Pintech
- Size: Can be customized
- System of Measurement: Metric
- Tolerance: m6 or as per requirement
- Material: Alloy Steel or Stainless Steel
- Material Processes: Hardened and tempered
- Hardness Rating: HRC58~62
- Standards and Specifications: DIN 6325, DIN 7, ISO 2338, ISO 8734
- Sample: normal samples in stock are free
Applications Of Parallel Positioning Pins
Mechanical Engineering
Used in machinery and equipment to align and position components accurately, ensuring proper assembly and function.
Automotive Industry
Employed in engine assemblies, transmission systems, and other automotive components where precise alignment is critical for performance.
Manufacturing Fixtures
Commonly used in jigs and molds to maintain the exact position of components during manufacturing processes, ensuring repeatability and accuracy.
Inspection and Quality Control
Dimensional Inspection
Each pin undergoes rigorous dimensional inspection to ensure it meets the specified tolerances for diameter, length, and parallelism.
Surface Finish Inspection
The surface quality is inspected to ensure it meets the required smoothness and finish standards.
Hardness Testing
If the pins have undergone heat treatment, their hardness is tested to ensure they meet the desired specifications.
